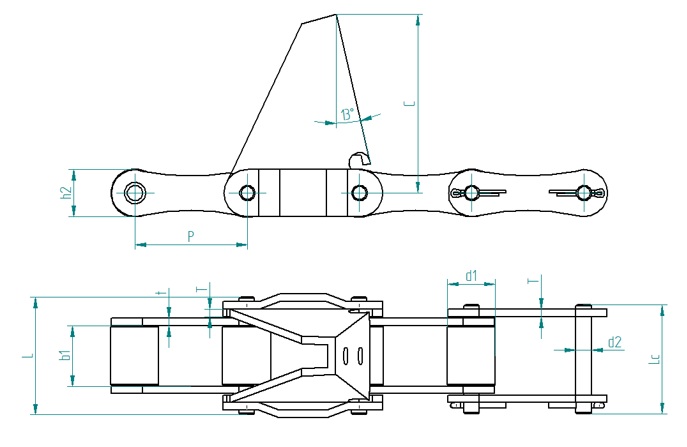

Kettentyp |
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Laschen- dicke |
Min. Bruchkraft |
|||
|
Chain type |
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Plate thickness |
Min. tensile strength |
|||
|
ISO |
P [mm] |
b1 min. [mm] |
d1 max. [mm] |
d2 max. [mm] |
L max. [mm] |
Lc max. [mm] |
h2 max. [mm] |
C [mm] |
t [mm] |
T [mm] |
FU [kN] |
|
S62R-C6E |
41,91 |
25,8 |
19,05 |
8,50 |
47,8 |
44,6 |
20,1 |
66,0 |
2,8 |
3,0 |
42,0 |
