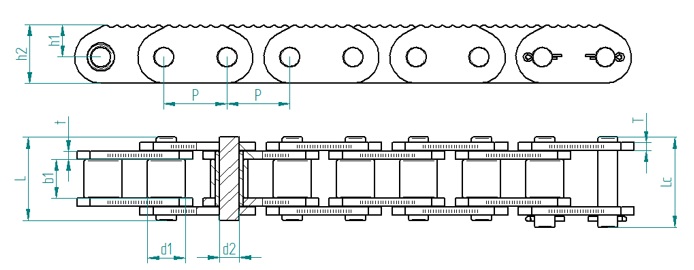

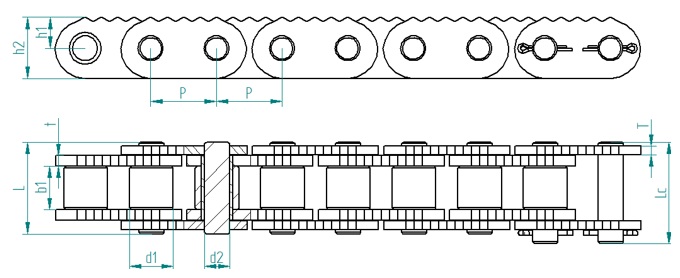

Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Höhe Zahnprofil |
Laschen- dicke |
Min. Bruchkraft |
Gewicht / Meter |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Height tooth profile |
Plate thickness |
Min. tensile strength |
Weight / meter |
||
|
|
P
[mm] |
b1 min. [mm] | d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | h2 max.
[mm] |
h1
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
q
[kg/m] |
| 20 B-1 – 20061 | 31,75 | 19,56 | 19,05 | 10,19 | 42,0 | 45,5 | 29,42 | 16,2 | 4,00 | 4,00 | 95,0 | 3,95 |
|
Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Höhe Zahnprofil |
Laschen- dicke |
Min. Bruchkraft |
Gewicht / Meter |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Height tooth profile |
Plate thickness |
Min. tensile strength |
Weight / meter |
||
|
|
P
[mm] |
b1 min. [mm] | d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | h2 max.
[mm] |
h1
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
q
[kg/m] |
| 24 B-1 – 24051 | 38,10 | 25,40 | 25,40 | 14,63 | 53,4 | 59,1 | 35,5 | 18,0 | 6,00 | 5,00 | 160,0 | 7,62 |
