Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Höhe Zahnprofil |
Laschen- dicke |
Min. Bruchkraft |
Gewicht / Meter |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Height tooth profile |
Plate thickness |
Min. tensile strength |
Weight / meter |
||
|
|

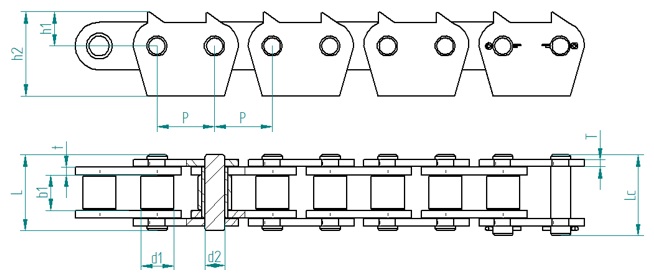

P
[mm] |
b1 min. [mm] | d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | h2 max.
[mm] |
h1
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
q
[kg/m] |
| 24 A-1 – 24041 | 38,10 | 25,22 | 22,23 | 11,11 | 50,1 | 54,3 | 38,3 | 20,8 | 4,80 | 4,80 | 124,6 | 5,90 |
|
Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Höhe Zahnprofil |
Laschen- dicke |
Min. Bruchkraft |
Gewicht / Meter |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Height tooth profile |
Plate thickness |
Min. tensile strength |
Weight / meter |
||
|
|
P
[mm] |
b1 min. [mm] | d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | h2 max.
[mm] |
h1
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
q
[kg/m] |
| 32 B-1 – 32021 | 50,80 | 30,99 | 29,21 | 17,81 | 66,8 | 73,8 | 74,0 | 30,0 | 7,00 | 6,30 | 250,0 | 12,20 |
