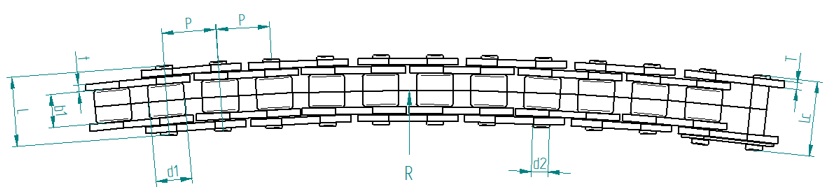

Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Radius |
Laschendicke |
Min. Bruchkraft |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Radius |
Plate thickness |
Min. tensile strength |
||
| ISO
|
P
[mm] |
b1
min. [mm] |
d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | R
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
| 08 B-1 SB | 12,70 | 7,75 | 8,51 | 3,96 | 16,4 | 17,7 | 360 | 1,50 | 1,50 | 11,2 |
| 12 B-1 SB | 19,05 | 11,38 | 12,07 | 5,08 | 21,8 | 24,2 | 510 | 1,80 | 1,80 | 20,0 |
| 16 B-1 SB | 25,40 | 17,02 | 15,88 | 7,94 | 35,5 | 38,2 | 1450 | 3,80 | 3,10 | 45,0 |
Weitere Typen und Abmaße bieten wir Ihnen auf Anfrage gerne an.
Further types and dimensions on request.
