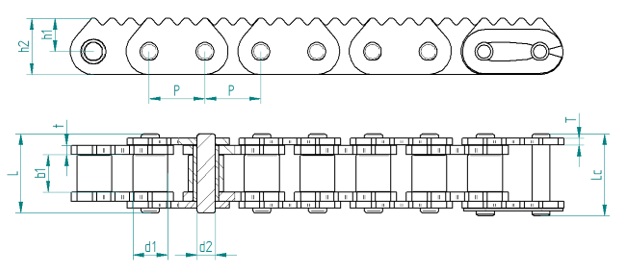

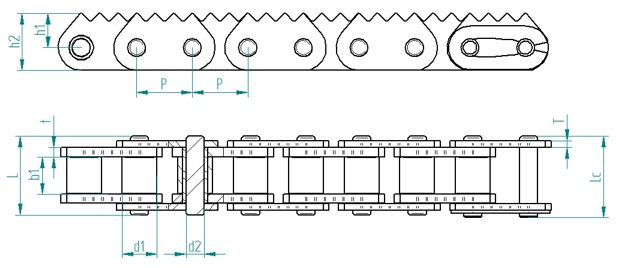

Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Höhe Zahnprofil |
Laschen- dicke |
Min. Bruchkraft |
Gewicht / Meter |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Height tooth profile |
Plate thickness |
Min. tensile strength |
Weight / meter |
||
|
|
P
[mm] |
b1 min. [mm] | d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | h2 max.
[mm] |
h1
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
q
[kg/m] |
| 16 B-1 – 16041 | 25,40 | 17,02 | 15,88 | 8,28 | 36,1 | 38,9 | 26,5 | 16,0 | 4,00 | 3,00 | 60,0 | 3,16 |
|
Kettentyp
|
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Höhe Zahnprofil |
Laschen- dicke |
Min. Bruchkraft |
Gewicht / Meter |
||
|
Chain type
|
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Height tooth profile |
Plate thickness |
Min. tensile strength |
Weight / meter |
||
|
|
P
[mm] |
b1 min. [mm] | d1 max. [mm] | d2 max.
[mm] |
L max. [mm] | Lc max. [mm] | h2 max.
[mm] |
h1
[mm] |
t
[mm] |
T
[mm] |
FU
[kN] |
q
[kg/m] |
| 16 B-1 – 16042 | 25,40 | 17,02 | 15,88 | 8,28 | 36,1 | 38,9 | 25,5 | 15,0 | 4,00 | 3,00 | 60,0 | 3,02 |
