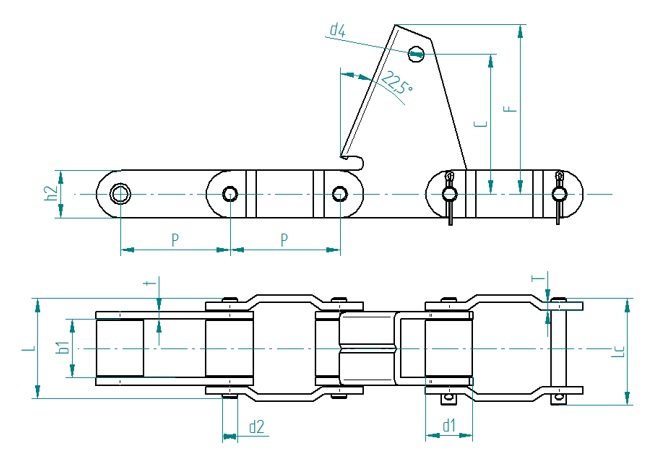

| Kettentyp | Teilung | lichte
Weite |
Rollen-Ø | Bolzen-Ø | Bolzenlänge | h2 | t/T | C | F | d4 | Min. Bruchkraft | Gewicht / Meter | |
| Chain type | Pitch | Inner width | Roller – Ø | Pin – Ø | Pin length | Min. tensile strength | Weight / meter | ||||||
| ISO | P [mm] | b1 min. [mm] | d1 max. [mm] | d2 max. [mm] | L max. [mm] | Lc max. [mm] | FU [kN] | q [kg/m] | |||||
| 384 VB F2 | 38,4 | 19,05 | 15,88 | 8,28 | 36,1 | 39,1 | 20,5 | 3,0 | 51,6 | 65,0 | 8,1 | 50,0 | 2,33 |
