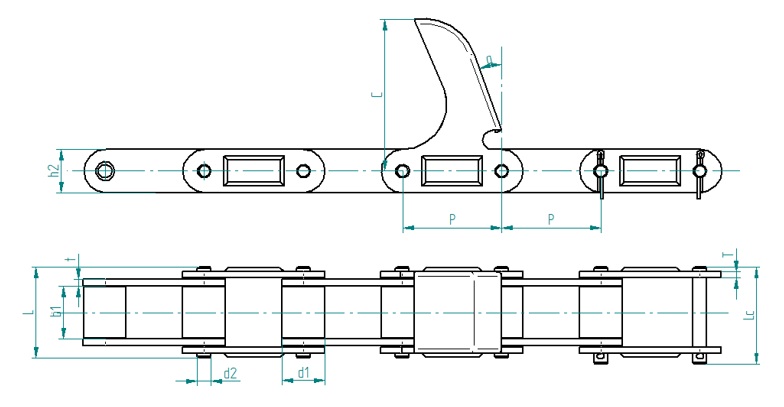

| Kettentyp | Teilung | lichte
Weite |
Rollen-Ø | Bolzen-Ø | Bolzenlänge | h2 | t/T | C | α | Min. Bruchkraft | Gewicht / Meter | |
| Chain type | Pitch | Inner width | Roller – Ø | Pin – Ø | Pin length | Min. tensile strength | Weight / meter | |||||
| ISO | P [mm] | b1 min. [mm] | d1 max. [mm] | d2 max. [mm] | L max. [mm] | Lc max. [mm] | FU [kN] | q [kg/m] | ||||
| CA2060-C6E | 38,1 | 12,57 | 11,91 | 5,94 | 25,9 | 28,3 | 18,0 | 2,42 | 63,5 | 20° | 31,1 | 1,40 |
| CA2060H-C6E | 38,1 | 12,57 | 11,91 | 5,94 | 31,0 | 31,6 | 18,0 | 3,25 | 63,5 | 20,5° | 31,1 | 1,78 |
