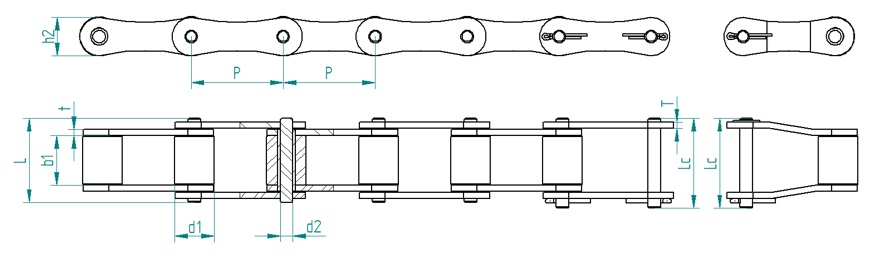

Kettentyp |
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Laschen- dicke |
Min. Bruchkraft |
Mittlere Bruchkraft |
Gewicht / Meter |
||
|
Chain type |
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Plate thickness |
Min. tensile strength |
Average tensile str. |
Weight / meter |
||
|
ISO |
P [mm] |
b1 min. [mm] |
d1 max. [mm] |
d2 max. [mm] |
L max. [mm] |
Lc max. [mm] |
h2 max. [mm] |
t [mm] |
T [mm] |
FU [kN] |
FB [kN] |
q [kg/m] |
|
A 550 |
41,40 |
19,81 |
16,87 |
7,19 |
35,0 |
38,0 |
19,3 |
2,8 |
2,8 |
39,1 |
51,2 |
1,79 |
|
A 555 |
41,40 |
12,70 |
16,87 |
7,19 |
29,1 |
32,0 |
19,3 |
3,1 |
3,1 |
39,1 |
56,0 |
1,60 |
|
A 557 |
41,40 |
20,24 |
17,78 |
8,00 |
37,4 |
40,6 |
23,1 |
3,1 |
3,1 |
55,6 |
74,3 |
2,45 |
|
A 620 |
42,01 |
24,51 |
17,91 |
7,19 |
41,8 |
45,2 |
20,2 |
3,2 |
3,2 |
39,1 |
55,1 |
2,18 |
