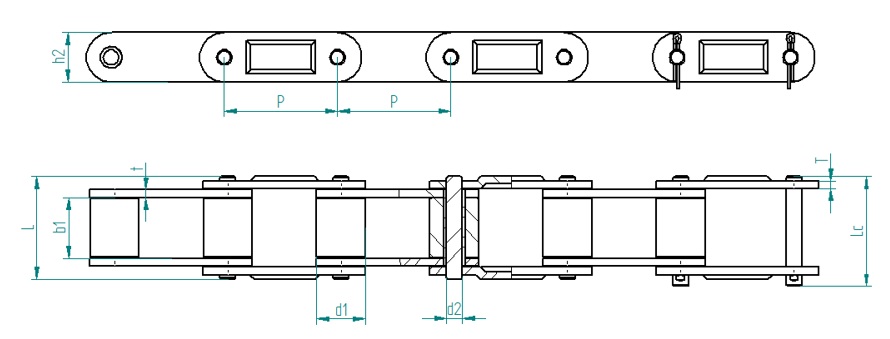

Kettentyp |
Teilung |
lichte Weite |
Rollen-Ø |
Bolzen-Ø |
Bolzenlänge |
Laschen-höhe |
Laschen- dicke |
Min. Bruchkraft |
Mittlere Bruchkraft |
Gewicht / Meter |
||
|
Chain type |
Pitch |
Inner width |
Roller – Ø |
Pin – Ø |
Pin length |
Plate height |
Plate thickness |
Min. tensile strength |
Average tensile str. |
Weight / meter |
||
|
ISO |
P [mm] |
b1 min. [mm] |
d1 max. [mm] |
d2 max. [mm] |
L max. [mm] |
Lc max. [mm] |
h2 max. [mm] |
t [mm] |
T [mm] |
FU [kN] |
FB [kN] |
q [kg/m] |
|
CA 627 |
30,00 |
19,05 |
15,88 |
8,28 |
36,1 |
39,4 |
20,5 |
3,00 |
3,00 |
50,0 |
55,0 |
2,51 |
|
CA 550 D |
41,40 |
19,81 |
16,87 |
7,19 |
35,0 |
38,0 |
19,3 |
2,80 |
2,80 |
39,1 |
51,2 |
1,94 |
|
CA 555 D |
41,40 |
12,70 |
16,87 |
7,19 |
29,1 |
32,0 |
19,3 |
3,10 |
3,10 |
39,1 |
56,0 |
1,72 |
|
CA 557 D |
41,40 |
20,24 |
17,78 |
8,00 |
37,4 |
40,6 |
23,1 |
3,10 |
3,10 |
55,6 |
74,3 |
2,60 |
|
CA 620 D |
42,01 |
24,51 |
17,91 |
7,19 |
41,8 |
45,2 |
20,2 |
3,25 |
3,25 |
39,1 |
55,1 |
2,35 |
